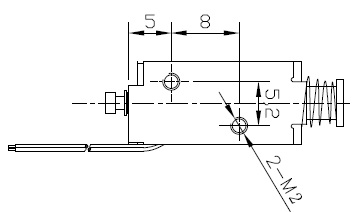

电磁铁：广东佛山酒精测试仪框架电磁铁: AU0419S-03B07 (3)

电磁铁：广东佛山酒精测试仪框架电磁铁: AU0419S-03B07 (3)
GUANGDONG SHENZHEN YAXIN ELECTUONICS FRAME SOLENOID

5. 框架电磁铁电气特性(ELECTRONICAL CHARACTERISTICS)

5-1 力量(FORCE)

2mm克服弹簧阻力

5-2 绝缘电阻(INSULATION RESISTANCE):

线圈和框架间100Ω (DC500V 常规温度/湿度)

BETWEEN COIL AND FRAME DC500V NORMAL TEMP/HUMIDITY, 100Ω MEGGER

5-3 耐电压(DIELECTRIC STRENGTH):

线圈和框架间AC600V(50/60Hz)lMin或AC600V(50/60Hz)lSec(击穿电流10mA)

BETWEEN COIL AND FRAME AC600V(50/60Hz)lMin OR AC600V(50/60Hz)lSec(10mA)

5-4 温升(TEMPERATURE RISE):

在额定电压DC3V下，温升为65℃ Max

(TEMPERATURE RISE) AFTER DC3V APPLIED BY RESISTANCE METHOD 65 deg MAX

5-5 寿命(LIFE):

典型值为20万次(100%通电)

REPETITIVE OPERATION FOR 0.2MILLION CYCLE(100% ED)

5-6 残留吸引力(RESIDUAL MAGNETISM)

在DC-3V下，滑杆的重量加上10gf (垂直方向)

AFTER DC-3V APPLIED SHALL BE RETURN AT WEIGHT OFIRON ROD AND 10gf (PERPENDICULAR

DIRECTION)

5-7 端子强度(LEADWIRE STRENGTH)

当施加lkgf (任意方向)时，不允许脱落。

ADDING lKgf(RANDOM DIRECTION) NOT CHIP OFF

5-8 工作温度、湿度(OPERATING TEMP/HUMIDITY):
-40℃- +55℃, 5%RH - 8%RH

广东深圳广州佛山中山东莞框架电磁铁：AU0419S-03B07 (3)
详细参数查询请登陆：http://www.yaxinsz.com/showdeteal/?id=655
