广东深圳手风琴框架电磁铁：AC0640L-12A60 (3)

广东深圳手风琴框架电磁铁：AC0640L-12A60 (3)
GUANGDONG SHENZHEN YAXIN ELECTUONICS C FRAME SOLENOID

5. C型框架电磁铁电气特性(ELECIRONICAL CHARACTERISTICS)

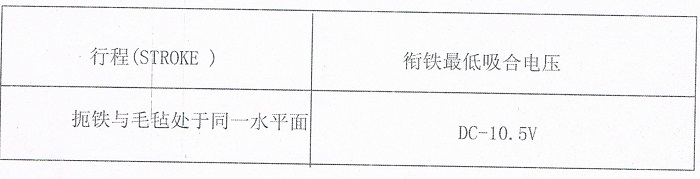

5-1 力量( FORCE)

5-2 残留吸引力(RESIDUAL MAGNETISM)

在DC-V12下，滑杆的重量加上10gf(垂直方向)

AFTER DC-12V APPLIED SHALL BE RETURN AT WEIGHT OF IRON ROD AND 10gf (PERPENDICULAR DlRECTION)

5-3 绝缘电阻 (INSULATION RESISTANCE)

线圈和框架间100M Ω (DC500V 常规温度/湿度)

BETWEEN COIL AND FRAME DC500V NORMAL TEMP IHUMIDITY, 100M Ω MEGGER

5-4 耐电压 (DIELECTRIC STRENGTH)

线圈和框架间AC1200V(50/60Hz)lsec

BETWEEN COIL AND FRAME AC1200V(50/60Hz)l sec

5-5 温升 (TEMPERATURE RISE)

在额定电压DC-12V下，温升为65 ℃ Max

AFTER DC-12V APPLIED BY RESISTANCE METHOD 65 deg MAX

5-6 寿命 (LIFE)

典型值为50万次

REPETITIVE OPERATION FOR O.5MILLION CYCLE

5-7 端子强度(LEADWlRE STRENGTH)

当施加0.5kgf(任意方向)时，不允许脱落

When applying 0.5 KGF (arbitrary direction), are not allowed to fall off

5-8 工作温度、湿度 (OPERATING TEMP/HUMIDITY)

-10- +90℃ ， 5%RH—85%RH

广东深圳框架电磁铁：AC0640L-12A60 (3)
详细参数查询请登陆：http://www.yaxinsz.com/showdeteal/?id=641
