保持电磁铁：广东深圳单向保持电磁铁系列/ AK2822S-05A86 (3)

保持电磁铁：广东深圳单向保持电磁铁系列/ AK2822S-05A86 (3)
GUANGDONG SHENZHEN YAXIN ELECTUONICS ONE-WAY KEEPSOLENOID

1.单向保持电磁铁产品型号（PRODUCT PART NO.）：AK2822S-05A86

2.单向保持式电磁铁电气特性(ELECTRONICAL CHARACTERISTICS)

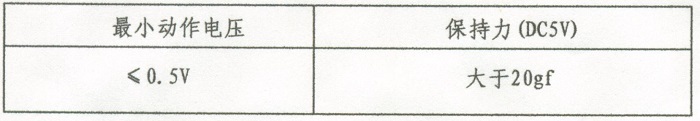

1 力量(FORCE)

2-2. 残留吸引力: 当周围温度为20℃ 时外加DC12V 电压工作20个回合后测，在垂直方向

时应为滑杆的重量+10gf 以下。

(RESIDUAL MAGNETI SM:SUPPLY DC12V WHEN AMBIENT TEMPERATURE IS 20℃ OPERATE TO 20 CYCLE ADD1NG LESS THAN 10gf TO THE WE1GHT OF PLUNGER.)

2-3 绝缘电阻：线圈和框架问100MO (DC500V 常规温度/湿度)

(INSULATION RESISTANCE)： BETWEEN COIL AND FRAME DC500V NORMAL TEMP/HUMIDITY, 100MO MEGGER

2-4 耐电压：线圈和框架问AC500V(50/60Hz)lMin或AC1200V (50/60Hz) lSec (击穿电流10mA)

(DIELECTRIC STRENGTH)： BETWEEN COIL AND FRAME AC500V(50/60Hz)lMin OR AC1200V (50/60Hz) lSec (10mA)

2-5 温升：在额定电压DC5V下，线圈温升最大至65 'C (在额定电压DC5V瞬间通电工作

20个周期的电阻法测量)

(TEMPERATURE R1SE:RATED VOLTAGE SUPPLY DC5V WHEN AMB1ENT TEMPERATURE IS 20'C , C01L

TEMPERATURE TO BE 65deg MAX. (W1TH 20 DUTY CYCLE ABOVE AND RATED VOLTAGE OF DC5V

ON 1NSTANTANEOUS ELECTRIFY BY RES1STANCE METHOD)

2-6 寿命：典型值为50万次(100%通电)

(LIFE)： REPETITIVE OPERATION FOR O.5MILLION CYCLE (power-on100%)

2-7 端子强度：当施加1kgf (任意方向)时，不允许脱落

(LEADWIRE STRENGTH) ADDING 1Kgf(RANDOM DIRECTION) NOT CHIP OFF

2-8 工作温度、湿度：- 5℃一+55℃， 5% RH - 85%RH

(OPERATING TEMP/HUMIDITY)：- 5℃一+55℃， 5% RH - 85%RH

广东深圳广州佛山中山东莞保持式电磁铁：AK2822S-05A86 (3)
详细参数查询请登陆：http://www.yaxinsz.com/showdeteal/?id=719
