广东深圳亚欣电器圆管电磁铁

GUANGDONG SHENZHEN YAXIN ELECTUONICS TUBULAR SOLENOID

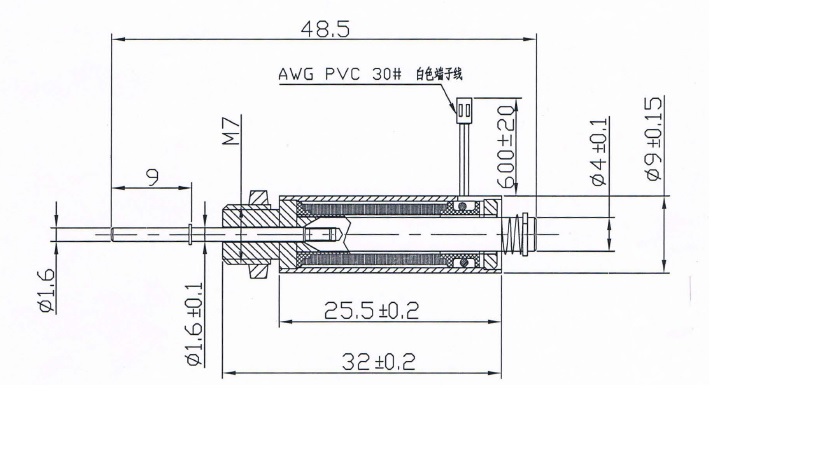

产品型号（PRODUCT PART NO.）：A00925S-24A150

5. 圆管电磁铁电气特性(ELECTRONICAL CHARACTERISTICS)

5-1 力量

行程（STROKE）：2mm

DC-24V初始值(INCIPIENT VALUE)：≥30gf

5-2 绝缘电阻(INSULATION RESISTANCE):

线圈和框架间100Ω (DC500V 常规温度/湿度)

BETWEEN COIL AND FRAME DC500V NORMAL TEMP/HUMIDITY, 100Ω MEGGER

5-3 耐电压(DIELECTRIC STRENGTH):

线圈和框架间AC1000V(50/60Hz)lMin或AC1200V(50/60Hz)lSec(击穿电流10mA)

BETWEEN COIL AND FRAME AC1000V(50/60Hz)lMin OR AC1200V(50/60Hz)lSec(10mA)

5-4 温升(TEMPERATURE RISE):

在额定电压DC24V下，温升为65℃ Max

(TEMPERATURE RISE) AFTER DC24V APPLIED BY RESISTANCE METHOD 65 deg MAX

5-5 寿命(LIFE):

典型值为50万次(连续通电)

REPETITIVE OPERATION FOR 0.5 MILLION CYCLE(CONTINUOUS

5-6 工作温度、湿度(OPERATING TEMP/HUMIDITY):

- 5 ℃- +55℃, 5%RH - 85%RH

5-7 残留吸引力（RESIDUAL MAGNETISM）

(在DC-24V 下) ，滑杆的重量加上5gf (垂直方向) (AFTER DC24V APPLIEO) Plungerweight

+ 5gf

5-8 端子强度（LEADWIRE STRENGTH） 0.5kgf

广东深圳亚欣电器圆管电磁铁：A00925S-24A150

详细参数查询请登陆：http://www.yaxinsz.com/ProductShow.asp?ID=466
